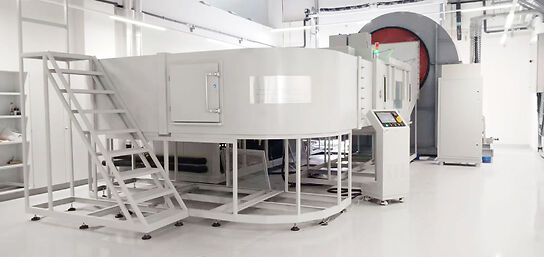

Customized Dual Dust and Sand Chamber HST 3M3-BDS Dual Dust & Sand Chamber
Description
Features
Specification
Models
Quick Quote
Description
Product Overview
Use our Sand and Dust chamber to simulate an accurate environmental condition with capable wind speeds of up to 29 m/s and temperatures up to 70ºC.
Our one of a kind sand and dust chambers are qualified to test against the below list of standards:
- MIL STD 810F/G – Method 510.5 and Method 510.4
Key Features
- Cable access port w/ plug
Features
- Cable access port w/ plug
Specification
| Specification | Specification in US | Specification in Metric |
|---|---|---|
| Interior Dimension | 27.56W x 27.56H x 27.56D Inch | 700W x 700H x 700D mm |
| Exterior Size | 14.75W x 8.2H x 7.21D ft. | 4500W x 2500H x 2200D mm |
| Temp Range | 23˚C ~ 70˚C | |
| Temp Uniformity | ≤ ±3.6ºF | ≤ ±2.0ºC |
| Humidity Range | <30%RH | |
| Air speed: Procedure I | 1.0 ~ 10.0 m/s | |
| Procedure II | 18.0 ~ 29.0 m/s | |
| Sand and Dust consistency: Procedure I | 3.0 ~ 17.6 g/m3 (10.6 ±7 g/m3) | |
| Procedure II | 0.18 + 0.2 g/m³; 1.1 ± 0.3 g/m³; 2.2 ± 0.5 g/m³ | |
| AC Power | 480VAC/60Hz/Three Phase/70A/45Kw |
