Product Overview

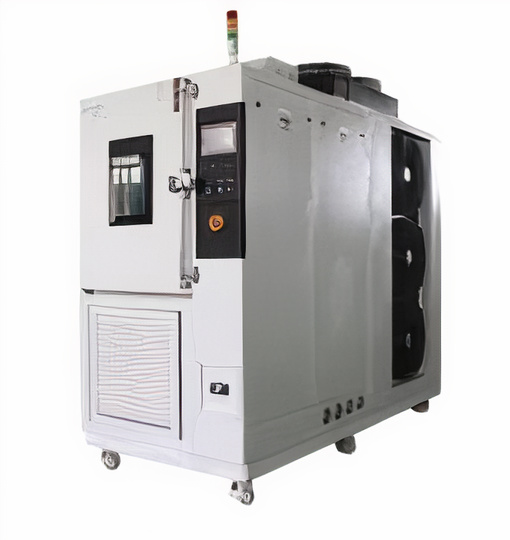

The HST-1000A-DT Battery Test Chamber is a specialized environmental test chamber designed for comprehensive battery testing including aging, cycle testing, and performance evaluation. With a 1000-liter capacity, it accommodates large battery packs used in electric vehicles and industrial applications, providing controlled temperature conditions for standardized battery performance testing.

Key Features

1000-liter capacity for large battery pack testing
Precise temperature control for battery aging and cycle tests
Designed for EV and industrial battery applications
Complies with battery testing standards
Integrated safety features for battery test safety

Hi-Grade Stainless steel-Explosion proof
Special equalization vent
Chamber Temperature monitoring
Test Specimen/Product Temperature monitoring
Gas monitoring & detection
Fire/Smoke detection & suppression
Safety door locking safety mechanism
Explosion proof
Explosion prevention Blow off Port
Explosion Venting
Special equalization venting system
Rapid Air Expansion
Purging system (Gn2, etc.)
Sheathed heater (Temperature limited)
Using LN2 or other methods such as Class ABC or BC dry chemical fire extinguisher (optional)
High-quality, movable/fixable PU active wheels
Applications: Lithium-Ion, etc.
Types of batteries: Battery Testing, Battery Containment, etc..

Specification	Specification in US	Specification in Metric
Model	HST-1000A-DT	HST-1000A-DT
Interior Dimension	3ft D x 3ft W x 3ft H	1000D x 1000W x 1000H mm
Exterior Dimensions	3.96ft D x 4.92ft W x 7.02ft H (approx)	1210D x 1500W x 2140D mm (approx)
Volume	35 cu ft	1000 Liters
Temperature Range	20ºC ~ +150ºC or Per customer requirements	68°F ~ 302°F or Per customer requirements
Controller	Programmable, Touch Screen, Remote control
AC Power Sources	480VAC/60Hz/3-Phase, 25 Amps (Other Options Available)
