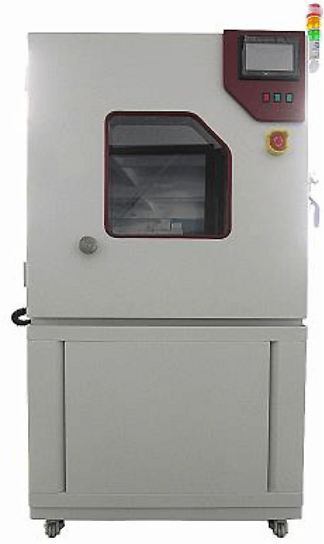

HST-512/1000/1620/1920-PS Settling Dust Chamber
Description
Features
Specification
Models
Quick Quote
Description
Product Overview
The HST-PS Series Settling Dust Chambers are available in 512, 1000, 1620, and 1920-liter capacities, designed for evaluating the dust ingress protection of products per IEC 60529 IP5X and IP6X ratings. These large chambers accommodate oversized industrial equipment, automotive components, and large assemblies requiring comprehensive dust resistance validation.
Key Features
- Available in 512, 1000, 1620, and 1920-liter sizes
- Evaluates IP5X and IP6X dust ingress protection
- Accommodates large industrial and automotive products
- Complies with IEC 60529 dust test standards
- Precise dust concentration control
Features
- Control Panel for Temperature, Humidity, and Timer
- High pressure circle air fan
- Safety features include Door Open, Pump Overload, Over current, and Emergency Stop
Specification
| Specification | Specification in US | Specification in Metric |
|---|---|---|
| Temperature Range | Room | Room |
| Interior Dimension | 19.7W x 19.7H x 19.7D Inch | 500W x 500H x 500D mm |
| Exterior Dimension | 31.5W x 59.1H x 27.6D Inch | 800W x 1500H x 700D mm |
| Dust Input | 0.13 lb/ft3 | 2.0 Kg/m3 |
| Door | 19.7 x 19.7 Inch | 500 X 500 mm |
| Observation Window | 11.8 x 11.8 In | 300 X 300 mm |
| Power Source | 220VAC/60Hz/1.2A/0.3KW | 220VAC/60Hz/1.2A/0.3KW |
Models
Not Available
