Hirayama PC-R9D Dual HAST Chamber — Next-Generation Two-Vessel Configuration
The Hirayama PC-R9D dual HAST chamber is the dual-chamber configuration of the latest-generation PC-R9 series, distributed in North America by Hastest Solutions. The PC-R9D houses two independent Highly Accelerated Stress Test chambers in a single floor footprint while adding USB data recording, remote operation software, automatic chamber cleaning mode, CE Marking, China SELO approval, and Wi-Fi/LAN connectivity over the previous PC-R8D generation.

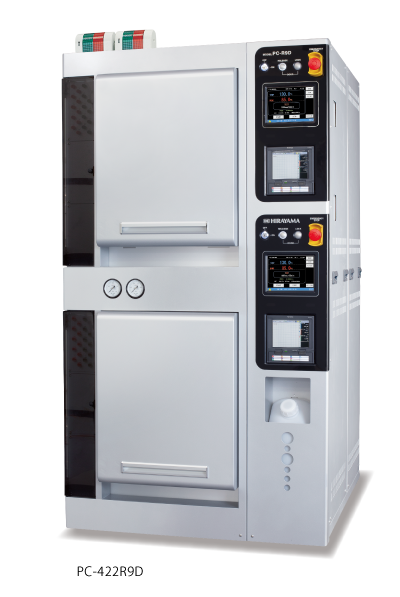

Available in two test capacities: PC-304R9D (34.5 L per chamber) for compact qualification labs, and PC-422R9D (84.4 L per chamber) for high-throughput semiconductor production qualification. Each chamber runs fully independent test conditions and programs.
PC-R9D Specifications
| Parameter | PC-304R9D | PC-422R9D |
|---|---|---|
| Test chambers | 2 independent vessels per unit | |
| Test chamber size (each) | φ300 × D522 mm (34.5 L) | φ420 × D657 mm (84.4 L) |
| Effective chamber size (each) | φ220 × D350 mm | φ340 × D475 mm |
| Temperature range (100% RH) | 105.0 – 151.4 °C | 105.0 – 133.3 °C |
| Temperature range (85% RH) | 110.0 – 157.5 °C | 110.0 – 140.0 °C |
| Temperature range (65% RH) | 118.0 – 162.5 °C | 118.0 – 150.0 °C |
| Humidity range | 65% RH – 100% RH (±3% RH at 85% RH) | |
| Pressure range | 0.019 – 0.393 MPa | 0.019 – 0.208 MPa |
| Temperature control method | PID control with SCR drive (upgraded from R8 SSD drive) | |
| Outside dimensions | W900 × D1100 × H1780 mm | |
| Weight | 475 kg | |
| Power supply | AC 220 / 230 / 240 V, 50/60 Hz, single phase | |
| Time signal terminals | 4 channels standard (option on PC-R8D) | |
| Compliance | CE Marking, S Mark, China SELO approved | |
| Connectivity | USB data export, Wi-Fi, LAN, RS-232C, HAST-NET (up to 16 chambers per PC) | |
What’s New in PC-R9D vs PC-R8D
- USB data recording — temperature, humidity, and pressure logs export directly to USB without an external recorder
- Remote operation software — full chamber control from any networked PC
- Automatic cleaning mode — programmed self-cleaning cycle between test runs
- CE Marking, S Mark, China SELO approval — global compliance out of the box
- Wi-Fi / LAN connectivity — modern network integration
- 4 time signal terminals standard on each chamber (option-only on R8D)
- SCR drive temperature control upgraded from SSD drive
- EU Model available — products compliant with European Standards (ENs)
Same Performance, Smarter Operation
Chamber dimensions, effective test capacity, temperature/humidity/pressure ranges, and IEC 60068-2-66 / JIS C 60068-2-66 compliance are identical between PC-R8D and PC-R9D — the difference is in connectivity, automation, and global certification. For comparison see the PC-R8D or single-vessel PC-R9 pages.
Why Buy from Hastest Solutions
- Authorized North American Hirayama distributor since 2002
- U.S.-based installation, calibration, and engineering support from San Jose, California
- OEM Hirayama spare-parts inventory and HAST-NET software licensing
- ISO/IEC 17025 accredited contract HAST testing for pre-purchase validation
- 24+ years of HAST application engineering across semiconductor, automotive, aerospace, and energy industries
Frequently Asked Questions
Is the PC-R9D suitable for IEC 60068-2-66 testing?
Yes. The HUM unsaturated control mode meets the conditions defined in IEC 60068-2-66 and JIS C 60068-2-66, with adjustable humidity from 65–100% RH and full programmable temperature gradient control.
How many PC-R9D chambers can be monitored from a single PC?
With Hirayama HAST-NET software, up to 16 HAST chambers can be controlled and monitored from a single Windows PC over LAN.
Does PC-R9D support JEDEC JESD22-A110?
Yes. The PC-R9D is widely used for JEDEC JESD22-A110 highly accelerated stress testing of semiconductor packages, with optional Air HAST mode for testing under residual air and pressure.
